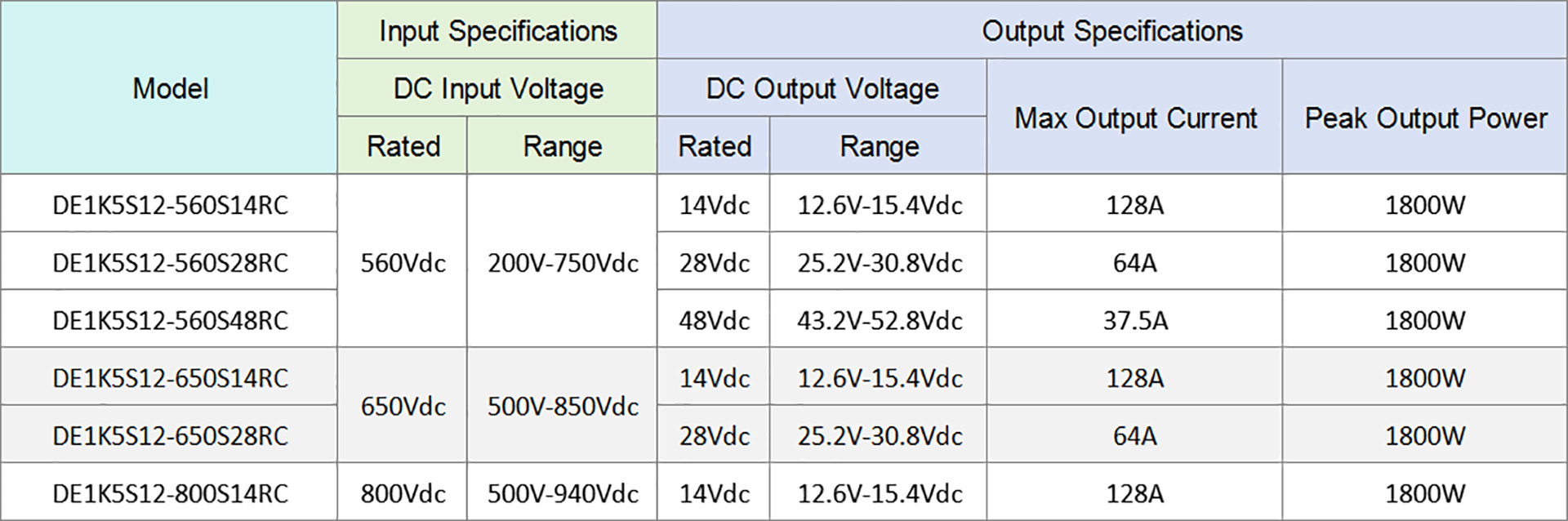

Input Voltage:200V~750VDC, 500V~850VDC, 500V~940VDC
Output Voltage:14VDC, 28VDC, 48VDC
Output Power:1.5kW
Efficiency:≥92%
Control:CAN/Enable
Dimension:210*62*62mm
Request a quote:Click Here
1.2kW 600V DC-DC Converter In Electric Vehicle
Main Feature:
Built specifically for pure electric vehicles. It has the characteristics of high power, small volume and whole sealing . It can automatic conversion constant voltage and current. Suitable for application design from high voltage 600V input to low voltage 14V output.
