DA22KM16 Series Bidirectional On-Board Charger OBC

Input Voltage:380VAC, 220VAC; 300V~800VDC

Output Voltage:200V~800VDC; 380VAC, 220VAC

Output Power:22kW, 6.6kW

Waterproof Grade:IP67

Control:CAN Communication

Dimension:506*402*150mm

Request a Quote:Click Here

DETAILS

Dilong DA22KM16-380S650C car power supply is a bidirectional OBC on-board charger that adopts advanced all digital resonant frequency modulation technology and has high efficiency. Compared with similar products, it is more energy-efficient, compact, and reliable in operation. The charging method adopts proprietary patented technology, which automatically switches between constant voltage, constant current, and constant power states, effectively saving charging time; Equipped with active power factor correction function, low pollution to the power grid; Wide range of input and output voltage; Adopting CAN2.0B communication protocol; Equipped with intelligent charging function, intelligent monitoring and fault alarm protection function, burning and writing, fault inquiry and other functions. Equipped with control guidance function connected to the charging station (optional) (compatible with GB/T18487.1_2015 IEC61851.1_2017 and SAE J1772-2017) etc.

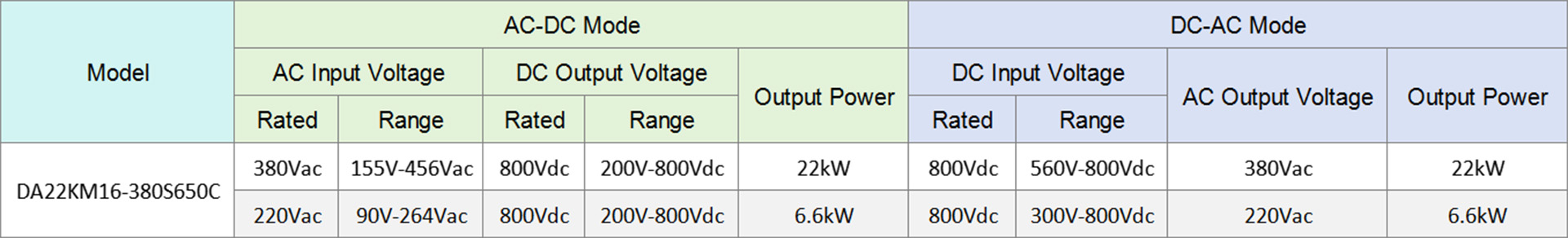

When DA22KM16-380S650C operates in forward direction AC-DC mode (charging mode), the rated power is 22KW. The power supply method can use three-phase AC input (three-phase five wire, three-phase four wire and three-phase three wire) or single-phase AC input, with an input voltage range of 155Vac~456Vac (phase voltage: 90Vac~264Vac), rated input voltage of 380Vac (phase voltage: 220Vac), 50Hz/60Hz. The output voltage range is 200Vdc~850Vdc, with a rated output voltage of 650Vdc and a maximum output current of 27.5A.

When the power supply operates in reverse DC-AC mode (discharge mode),, and there are four output methods. Method 1: output three-phase 380Vac, 50Hz, with a rated power of 22KW,V2L; Method 2: Output single-phase 220Vac, 50Hz, rated power 6.6KW,V2L; Method 3: output three-phase 380Vac, 50Hz, with a rated power of 22KW,V2G; Method 2: Output single-phase 220Vac, 50Hz, rated power 6.6KW,V2G.
