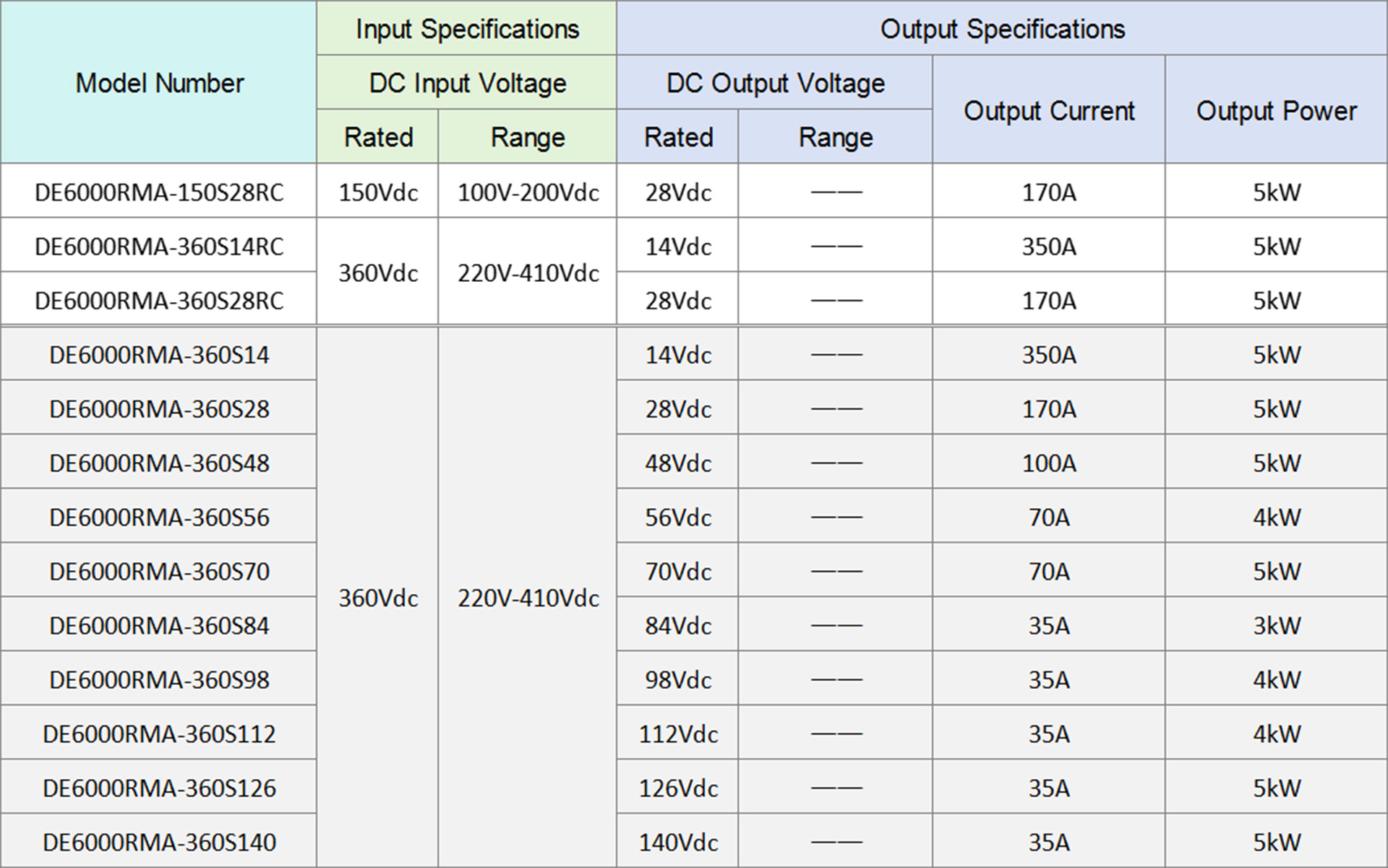

DE6000RMA Series 5kW DC DC Converter for EV

Input Voltage:100V~200VDC, 220V~410VDC

Output Voltage:14VDC, 28VDC, 48VDC, 56VDC, 70VDC, 84VDC, 98VDC, 112VDC, 126VDC, 140VDC

Output Power:5kW

Waterproof Grade:IP65

Control:CAN/Enable

Dimension:397*301*113mm

Request a Quote:Click Here

DETAILS

DE6000RMA-360S14RC is a DC/DC converter with features of high efficiency, big power, small volume and reliable working method, adopting advanced pulse width modulation technology.
250kbps 500kbps adaptive baud rate .With functions of input over/under voltage protection, output
over current protection, over temperature protection,etc. Achieving constant voltage and constant
current automatic transfer. It could converter high voltage battery voltage to low voltage used for
low voltage device and charge for low voltage battery, specially designed for electric vehicles. Adopting air cooling design, synchronizing with the world-class automobile manufacturers, the
performance indicators have reached and even exceeded the international peer level, with longer
fault free operation time, can be also applied to field needing constant voltage and constant current
field.
