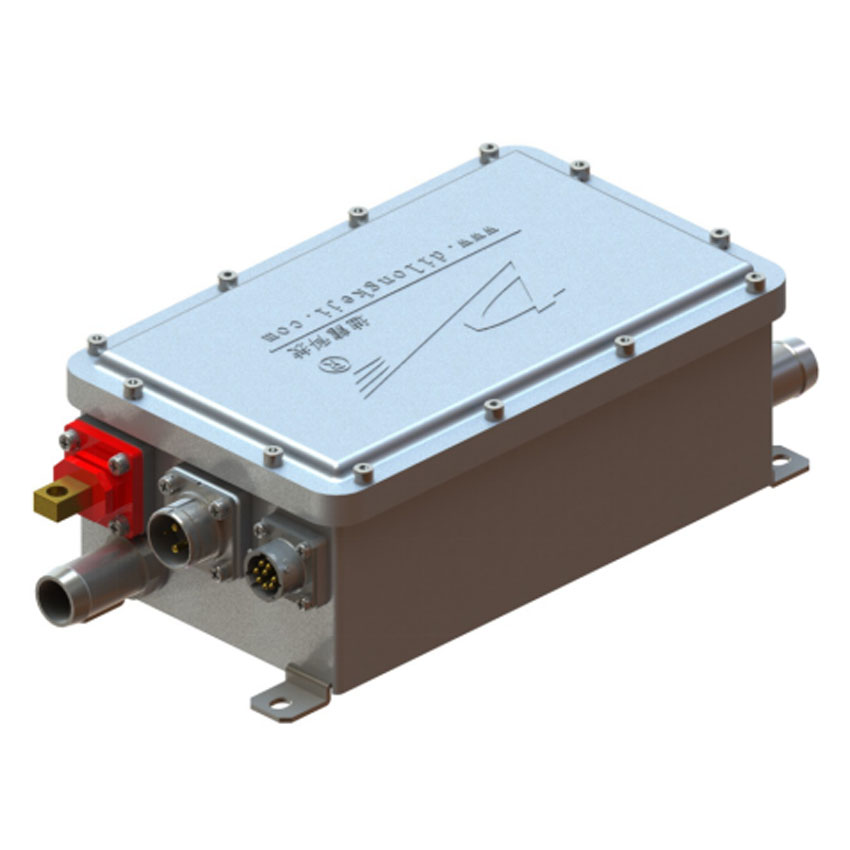

Dilong DE1K8S20A 2kW EV DC-DC converter with features of high efficiency, big power, small volume and reliable working method, adopting advanced pulse width modulation technology. With functions of input over/under voltage protection, output over current protection, over temperature protection, etc. Achieving constant voltage and constant current automatic transfer. It could converter high voltage battery voltage to low voltage used for low voltage device and charge for low voltage battery, specially designed for electric vehicles. Adopting liquid cooling design, synchronizing with the world-class automobile manufacturers, the performance indicators have reached and even exceeded the international peer level, with longer fault free operation time, can be also applied to field needing constant voltage and constant current field.

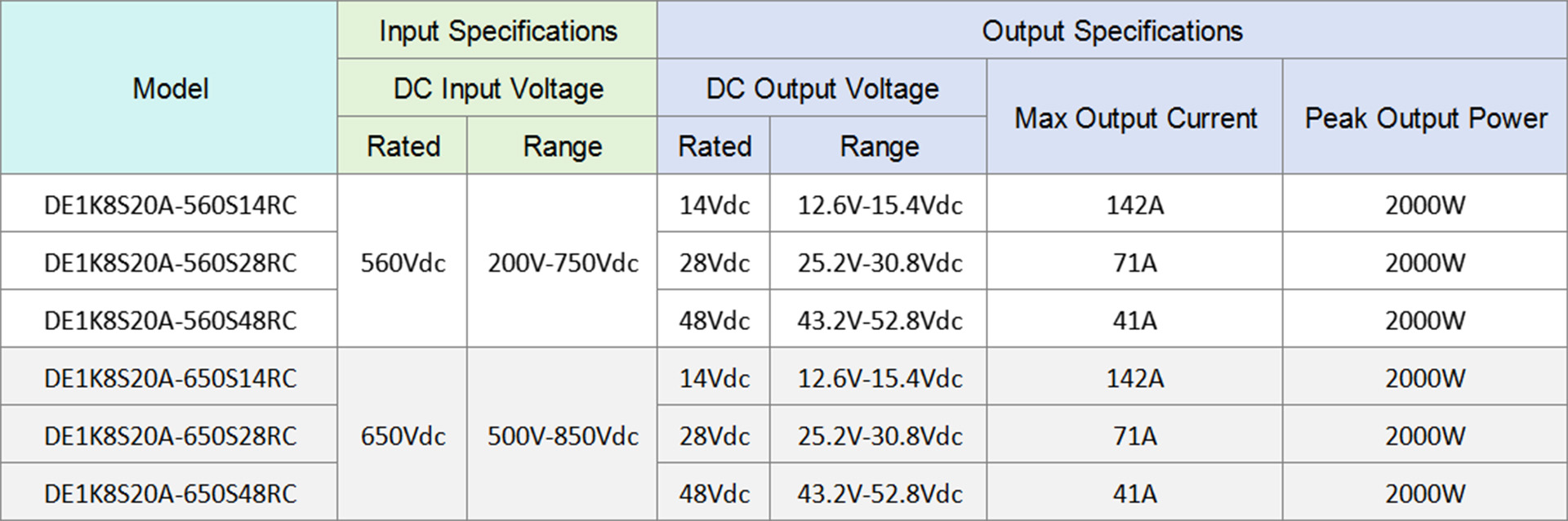

Please refer to the table below for product specifications.

Product Model:DE1K8S20A-560S14RC, DE1K8S20A-560S28RC, DE1K8S20A-560S48RC, DE1K8S20A-650S14RC, DE1K8S20A-650S28RC, DE1K8S20A-650S48RC

Input Voltage Range: 200V~750Vdc, 500V~850Vdc

Rated Output Voltage: 14Vdc, 28Vdc, 48Vdc

Output Voltage Range: 12.6V~15.4Vdc, 25.2V~30.8Vdc, 43.2V~52.8Vdc

Max Output Current: 142A, 71A, 41A

Rated/Peak Output Power: 1800W/2000W

Efficiency: ≥94%

Waterproof Grade: IP67

Cooling Way: Liquid Cooling

Control Way: CAN/Enable

Operation Temperature: -30℃～60℃

Storage Temperature: -40℃～105℃

Dimension(L*W*H): 242*139*87mm

Weight: 3.6kg
